ENGINEERING
|
|
|
John removing a hot rivet from the forge, December 2009. |
Billy and Aaron trial fit the piano front, Summer 2009.
|
|

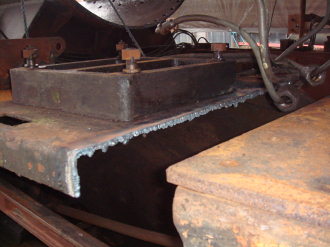

The running board trimmed back to accomodate the repair section, March 2009. |

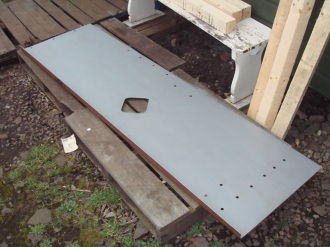

One of the new drivers side running boards being primed, March 2009.
|
|

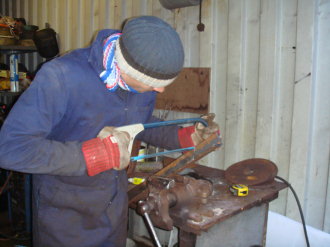

Aaron cutting the bracket for the cab side to allow it to be bent through 90 degrees, March 2009. |
Iain match drilling brackets for the cab side, March 2009.
|
|

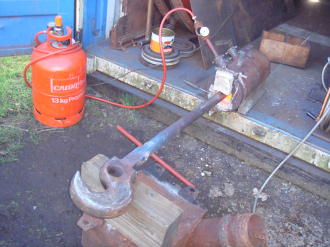

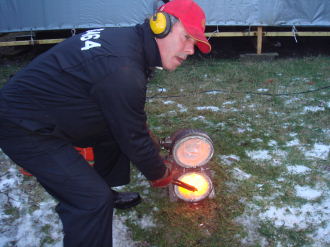

The drawbar being heated in the forge, February 2009. |
The drawbar after it had been straightened, March 2009.
|
|

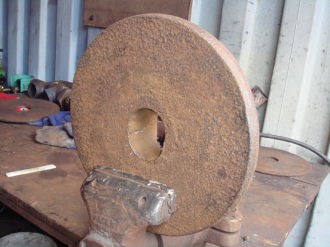

Part of the drawbar assembly, showing where it has worn against the drawbar, February 2009. |

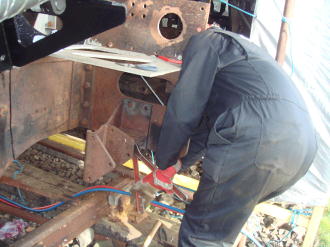

John removing the driver's side injector bracket, March 2009.
|
|
Aaron needlegunning behind the bufferbeam, January 2009. Photo IAH Smith |

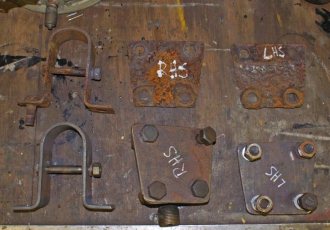

Some of the brackets removed from the engine, with their replacements, January 2009. Photo IAH Smith
|
|

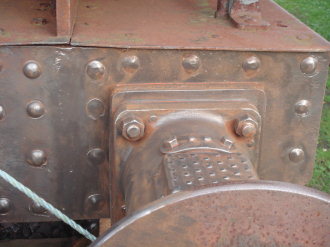

The repair to the buffer beam carried out in 1964 is clearly visible, October 2008. |
The driver's cab side being bolted up prior to rivetting, September 2008. Photo IAH Smith
|
|

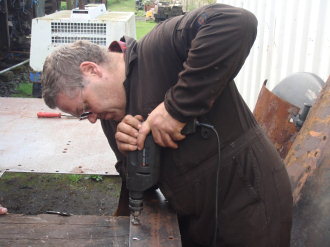

Iain countersinking the holes round the cab window, September 2008. |
The driver's cab side ready to be rivetted, September 2008.
|
|

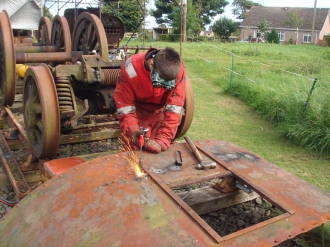

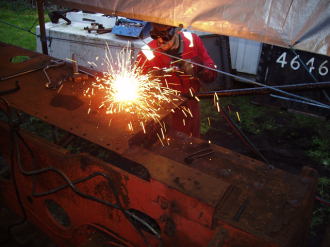

Aaron burning out rivets to dismantle the cab roof, August 2008. |

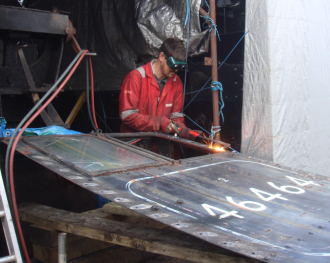

Robin cutting the new driver's cab side to shape, August 2008.
|
|
Smokebox door and retainer removed, April 2008. |
Ian driving out the smokebox door ring, April 2008.
|
|

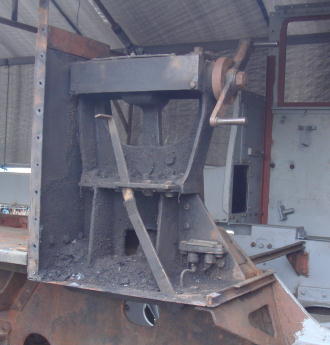

Lots of 1960's coal dust exposed by the removed driver's cab side, March 2008. |

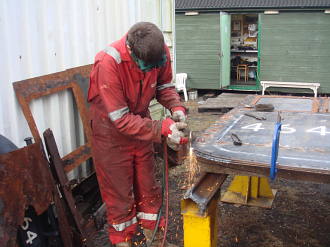

Robin dismantling the driver's cab side, March 2008.
|
|

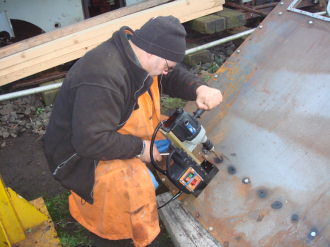

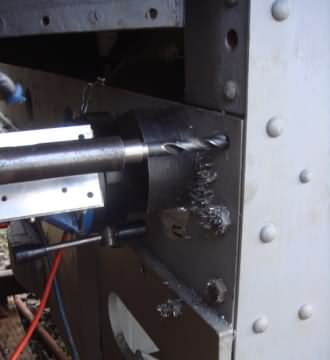

Match drilling the RHS cab side to allow bolting up to take place, March 2008. |

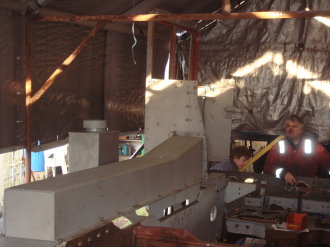

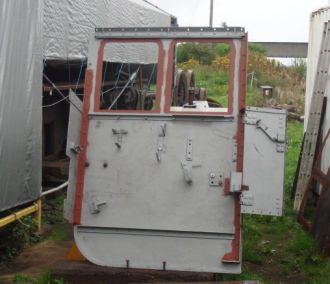

Ian and Glen admiring the newly assembled cab side and fire iron tunnel, March 2008.
|
|
RHS cab side with all the sub-assemblies rivetted in place. September 2007. |

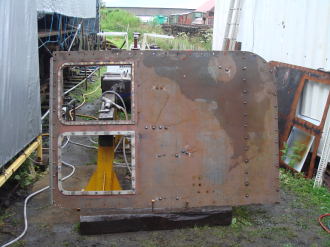

RHS cab side almost completed. July 2007.
|
|

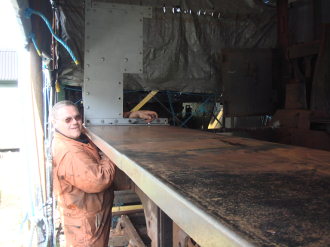

Iain trial fitting the new RHS running board sections, July 2007. |

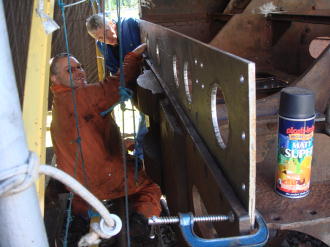

Iain and Jim lining up the cab support plate ready for match drilling, July 2007.
|
|

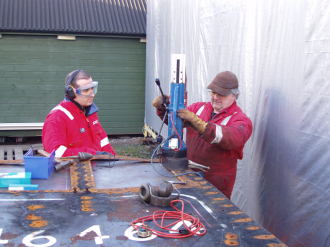

Dave and Ian drilling out the new cab side, using the old one as a template, January 2007. |

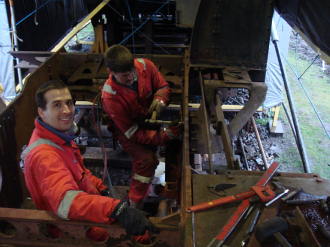

Dave and Robin removing studs from the frames, March 2007.
|
|
Iain posing with the fireman's cab side following it's successful removal, November 2006. |

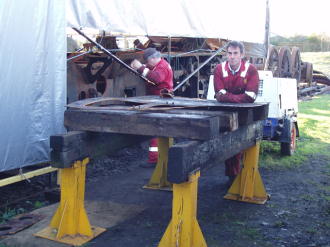

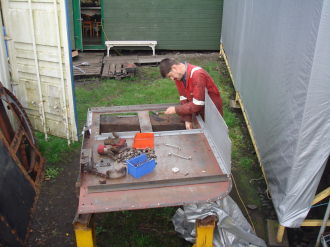

We have set up a temporary bench to fabricate the new cab sides on. December 2006.
|
|
The firemans side of the rear frames completely stripped down, November 2006. |
Gerry burning off bolts on the engine dragbox, January 2007.
|
|
Robin burning rivets to remove the footplating, November 2006. |

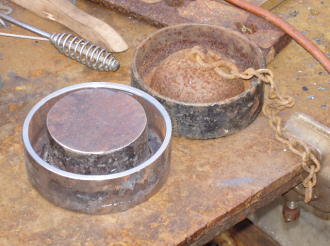

The underside of the new sandbox lid, with the original for comparison, April 2006.
|
|

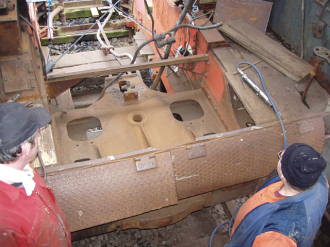

John and Iain assess the state of the engine dragbox, April 2006. |
Finished parts primed ready for re-assembly, March 2006.
|
|
Robin and Iain forming the head on a rivet, February 2006. Photo: Bill Rebecca |
One of the completed brackets being trial fitted, February 2006.
|
|

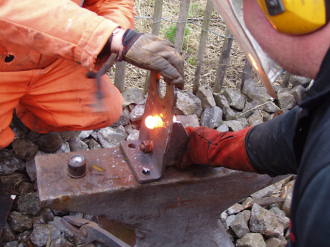

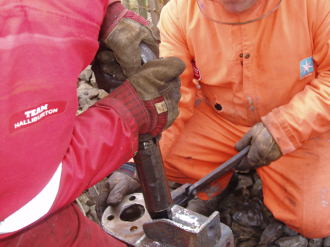

The hot rivet being put in place. The 'hold-up' rivet snap can be seen mounted in the anvil, February 2006. Photo: Bill Rebecca |

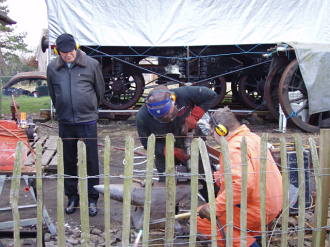

Bill supervising operations as Ian drives another rivet home, February 2006.
|
|

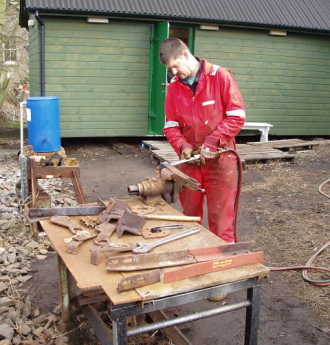

Robin heating one of the brackets prior to bending it back into shape, February 2006. |
Iain preparing one of the brackets for welding. Several parts were gas-axed during the move from Aviemore to get the engine on the low-loader.
|
